Description

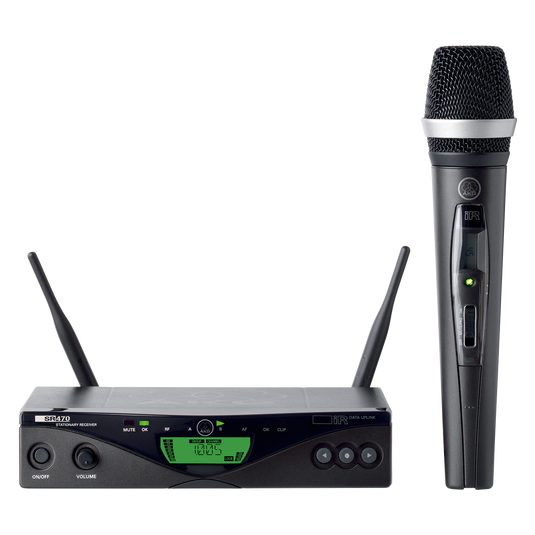

The AKG WMS470 Vocal Set D5 is a professional multichannel analog wireless microphone system built for clear live vocals and dependable RF performance. This Band 8 version operates from 570.1 to 600.5 MHz and pairs the SR470 diversity receiver with an HT470 handheld transmitter fitted with AKG's D5 dynamic supercardioid capsule.

Features

Band 8 operation from 570.1 to 600.5 MHz
HT470 handheld transmitter with D5 dynamic supercardioid capsule
SR470 half-rack microprocessor-controlled diversity receiver
1,200 selectable frequencies with automatic frequency setup
Infrared synchronization transfers receiver settings to the transmitter
Pilot-tone transmission supports tone-code squelch and battery-status monitoring
Up to 16 simultaneous channels within one frequency band and up to 48 across multiple bands
Up to 14 hours of transmitter operation with a lithium AA battery
Balanced XLR and unbalanced 1/4-inch receiver audio outputs
Compatible with many WMS4000 and WMS4500 system accessories

Why We Like This

The WMS470 combines detailed D5 vocal sound with serious setup tools, metal receiver construction, and long battery life, so it works equally well for touring racks, theaters, houses of worship, and installed venues.

FAQs

Q: What frequency range does this WMS470 system use?
A: This Band 8 model operates from 570.1 to 600.5 MHz. Confirm that this range is legal and coordinated for your location before use.

Q: Which microphone capsule is included?
A: The HT470 handheld transmitter is fitted with an AKG D5 dynamic supercardioid capsule for focused live-vocal pickup.

Q: How long does the handheld transmitter run?
A: Battery life is at least 7 hours with alkaline, at least 8 hours with a 2100 mAh NiMH cell, and up to 14 hours with a lithium AA battery.

Q: Can multiple WMS470 systems operate together?
A: Yes. Properly coordinated systems can support up to 16 simultaneous channels in one band and up to 48 channels when multiple frequency bands are used.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

Audio Frequency Response:	35 Hz–20 kHz (±3 dB)
Battery Life:	At least 7 hours alkaline; at least 8 hours NiMH 2100 mAh; up to 14 hours lithium
Battery Type:	1 x AA battery
Brand:	AKG
Handheld Transmitter:	AKG HT470
Included Components:	SR470 receiver, HT470/D5 handheld transmitter, stand adapter, RMU4000 rack-mount kit, universal US/UK/EU power supply, AA battery, and two BNC UHF antennas
Maximum SPL:	144 dB SPL
Microphone Capsule:	AKG D5 dynamic supercardioid
Model:	WMS470 Vocal Set D5 Band 8 50mW
Modulation:	Wideband FM
Operating Frequency Range:	570.1–600.5 MHz
RF Output Power:	Up to 50 mW ERP, country dependent
Receiver:	AKG SR470 half-rack microprocessor-controlled diversity receiver
Receiver Audio Outputs:	Balanced XLR and unbalanced 1/4-inch TS
Receiver Dimensions:	202 x 44 x 190 mm (7.8 x 1.7 x 7.4 inches)
Receiver Sensitivity:	6.3 dBµV / -100 dBm
Receiver THD:	0.3% or less
Receiver Weight:	972 g (2.2 lb)
Selectable Frequencies:	1,200
Set Configuration:	SR470 diversity receiver and HT470 handheld transmitter with D5 capsule
Signal-to-Noise Ratio:	Typically 120 dB(A)
Simultaneous Channels:	Up to 16 in one band; up to 48 across multiple bands
Switching Bandwidth:	Up to 30.5 MHz, country dependent
Synchronization:	Infrared
System Type:	Professional multichannel analog wireless microphone system
Transmitter Dimensions:	237 mm long x 51 mm diameter (9.3 x 2 inches)
Transmitter THD:	0.7% or less
Transmitter Weight:	240 g (8.5 oz) without battery
UPC:	885038029854
Wireless Band:	Band 8
