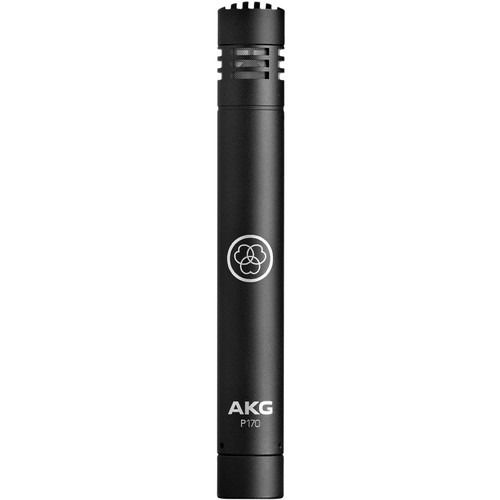

AKG P170 Small-Diaphragm Condenser Microphone (Black)

$161.25
$129.00
You save $32.25
AKG P170 Small-Diaphragm Condenser Microphone
AKG P170 Small-Diaphragm Condenser Microphone
AKG P170 Small-Diaphragm Condenser Microphone
SKU:
3101H00410
UPC:
885038037040
MPN:
885038037057
Width:
7.50 (in)
Height:
3.50 (in)
Depth:
3.00 (in)
Shipping:
Calculated at Checkout
Current Stock:

Description

The AKG P170 Small-Diaphragm Condenser Microphone (Black) is a small-diaphragm condenser microphone designed for vocals, acoustic instruments, podcasting, and professional recording. It combines cardioid pickup, a 20 Hz to 20 kHz frequency response and a 155 dB maximum SPL for practical control across a wide range of sources.

Features

  • Designed for vocals, acoustic instruments, podcasting, and professional recording
  • Cardioid polar pattern focuses pickup on the source and reduces sound from behind
  • Small-diaphragm condenser design
  • 0.5 inches / 12.7 mm diaphragm
  • 20 Hz to 20 kHz frequency response
  • Handles sound pressure levels up to 155 dB
  • -20 dB pad provides additional headroom for loud sources
  • One 3-pin XLR output
  • Powered by phantom power
  • Pressure-Gradient Design
  • 0.5" Gold-Sputtered Diaphragm
  • All-Metal Body

Why We Like This

The P170 offers a useful balance of detail, source isolation, and practical controls. It can move between vocals, acoustic instruments, podcasting, and professional recording without forcing engineers to build the session around a highly specialized microphone.

FAQs

Q: What is the AKG P170 best used for?
A: It is designed for vocals, acoustic instruments, podcasting, and professional recording.

Q: What polar pattern does the AKG P170 use?
A: It uses a cardioid polar pattern.

Q: What connection does the AKG P170 use?
A: It uses one 3-pin XLR output.

Q: How is the AKG P170 powered?
A: It operates from phantom power.

Q: Can the AKG P170 handle loud sound sources?
A: It is rated for a maximum SPL of 155 dB. The -20 dB pad provides additional headroom for louder sources.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

Analog Output Connector:
1x XLR 3-Pin
Circuitry:
Solid-State
Color:
Black
Controls:
Pad
Diaphragm:
0.5 inches / 12.7 mm
Dimensions:
Diameter: 0.87 x L: 6.3 inches / Diameter: 22 x L: 160 mm
Element Type:
Condenser
Equivalent Noise Level:
19 dB (A-Weighted)
Frequency Response:
20 Hz to 20 kHz
MFR Number:
3101H00410
Maximum SPL:
155 dB
Microphone Type:
Small Diaphragm
Model:
P170
Operating Voltage:
48 V
Orientation:
End Address
Pad:
-20 dB
Polar Pattern:
Cardioid
Power Sources:
Phantom Power
Product Type:
Small-Diaphragm Condenser Microphone
Sensitivity:
15 mV/Pa
Sound Field:
Mono
