Description

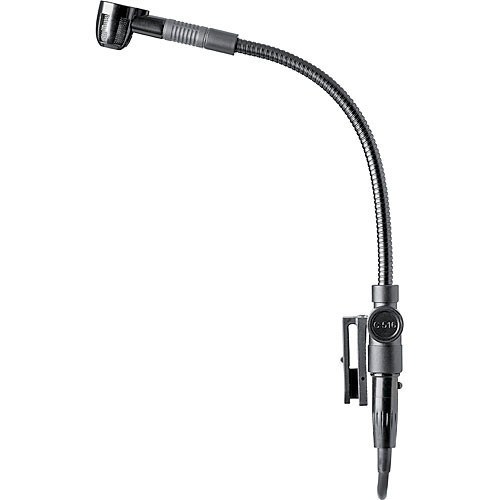

The AKG C516ML Woodwind and Brass Microphone is an instrument microphone designed for woodwinds, brass instruments, and close-miked live performance. It combines cardioid pickup and a 60Hz to 20kHz frequency response for practical control across a wide range of sources.
Features
- Designed for woodwinds, brass instruments, and close-miked live performance
- Cardioid polar pattern focuses pickup on the source and reduces sound from behind
- 60Hz to 20kHz frequency response
- Handles sound pressure levels up to 130/132 dB SPL (for 1%/3% THD)
- No pad provides additional headroom for loud sources
- No helps manage unwanted low-frequency energy
- Mini 3-pin XLR
- Powered by 9 to 52V Phantom
Why We Like This
The C516ML is shaped around real instrument-miking needs rather than general-purpose use, making placement faster and helping the source sit naturally in a live or recorded mix.
FAQs
Q: What is the AKG C516ML best used for?
A: It is designed for woodwinds, brass instruments, and close-miked live performance.
Q: What polar pattern does the AKG C516ML use?
A: It uses a cardioid polar pattern.
Q: What connection does the AKG C516ML use?
A: It uses Mini 3-pin XLR.
Q: How is the AKG C516ML powered?
A: It operates from 9 to 52V Phantom.
Q: Can the AKG C516ML handle loud sound sources?
A: It is rated for a maximum SPL of 130/132 dB SPL (for 1%/3% THD). The No pad provides additional headroom for louder sources.
Q: Does the AKG C516ML include low-frequency filtering?
A: Yes. It includes no to help manage unwanted low-frequency energy.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Dimensions: |
9.3 x 1.9 inches (235 x 47mm),Cable Length: 5-feet (1.5m) |
Frequency Response: |
60Hz to 20kHz |
Low Frequency Roll-Off: |
No |
MFR Number: |
3063X00020 |
Maximum Input Sound Level: |
130/132 dB SPL (for 1%/3% THD) |
Model: |
C516ML |
Output Connectors: |
Mini 3-pin XLR |
Output Impedance: |
Recommended Load: >/= 2000 ohms |
Pad: |
No |
Polar Pattern: |
Cardioid |
Power Requirements: |
9 to 52V Phantom |
Product Type: |
Instrument Microphone |
Signal-to-Noise Ratio: |
63 dB |
Transducer: |
Condenser |
