Description

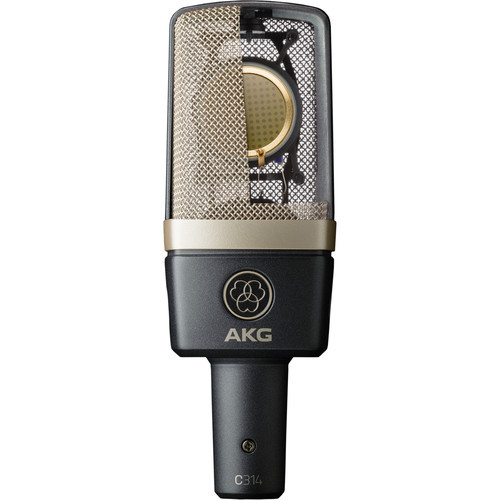

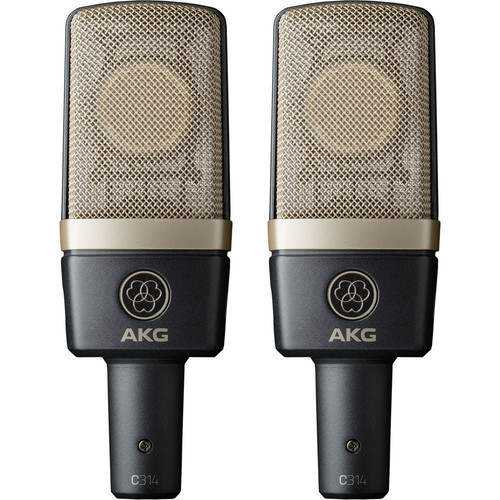

The AKG C314 Multi-Pattern Condenser Microphone (Matched Pair) is a matched pair of condenser microphones designed for stereo recording of overheads, piano, ensembles, acoustic instruments, and room ambience. It combines cardioid / figure-8 / omnidirectional / supercardioid pickup, a 20 Hz to 20 kHz frequency response and a 135 dB (.5% THD), 155 dB (.5% THD, with Pad) maximum SPL for practical control across a wide range of sources.
Features
- Designed for stereo recording of overheads, piano, ensembles, acoustic instruments, and room ambience

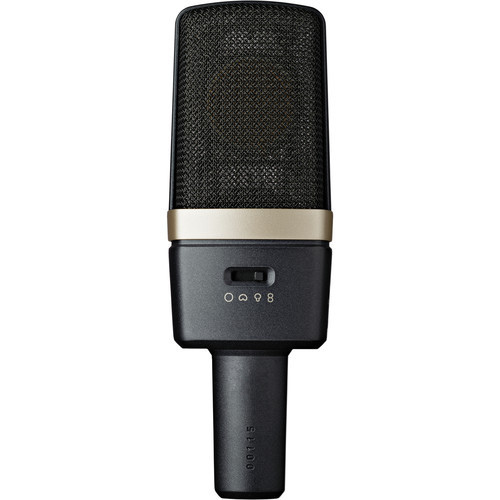

- Cardioid / Figure-8 / Omnidirectional / Supercardioid polar pattern provides focused pickup and strong off-axis rejection
- Large-diaphragm condenser design
- 1 inches / 25.4 mm diaphragm
- 20 Hz to 20 kHz frequency response
- Handles sound pressure levels up to 135 dB (.5% THD), 155 dB (.5% THD, with Pad)

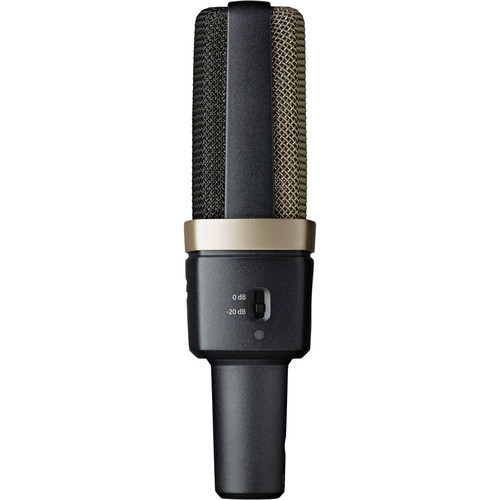

- -20 dB pad provides additional headroom for loud sources
- 100 Hz, 12 dB/Octave low-cut filter helps reduce rumble and unwanted low-frequency buildup
- One 3-pin XLR male output
- Powered by phantom power
- Matched pair supports consistent stereo recording
- Designed For Vocals
- 1" Dual-Diaphragm Capsule
Why We Like This
The C314 is especially useful when stereo consistency matters. A matched pair reduces level and tonal differences between channels, making setup faster for overheads, piano, ensembles, and room techniques.
FAQs
Q: What is the AKG C314 best used for?
A: It is designed for stereo recording of overheads, piano, ensembles, acoustic instruments, and room ambience.
Q: What polar patterns does the AKG C314 provide?
A: It provides cardioid, figure-8, omnidirectional, and supercardioid polar patterns.
Q: What connection does the AKG C314 use?
A: It uses one 3-pin XLR male output.
Q: How is the AKG C314 powered?
A: It operates from phantom power.
Q: Can the AKG C314 handle loud sound sources?
A: It is rated for a maximum SPL of 135 dB (.5% THD), 155 dB (.5% THD, with Pad). The -20 dB pad provides additional headroom for louder sources.
Q: Does the AKG C314 include low-frequency filtering?
A: Yes. It includes low-cut filter: 100 hz, 12 db/octave to help manage unwanted low-frequency energy.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Analog Output Connector: |
1x XLR 3-Pin Male |
Circuitry: |
Solid-State |
Color: |
Black |
Controls: |
Low Cut/HPF, Pad, Polar Pattern |
Diaphragm: |
1 inches / 25.4 mm |
Dimensions: |
H: 6.3 x W: 2.17 x L: 1.69 inches / H: 16 x W: 5.5 x L: 4.3 cm |
Dynamic Range: |
147 dB (A-Weighted) |
Element Type: |
Condenser |
Equivalent Noise Level: |
8 dB (A-Weighted) |
Filter & EQ: |
Low-Cut Filter: 100 Hz, 12 dB/Octave |
Frequency Response: |
20 Hz to 20 kHz |
MFR Number: |
3386X00110 |
Maximum SPL: |
135 dB (.5% THD), 155 dB (.5% THD, with Pad) |
Microphone Type: |
Large Diaphragm |
Model: |
C314 |
Off-Axis Rejection: |
1 dB at 60°,9 dB at 120°,>15 dB at 180° |
Orientation: |
Side Address |
Pad: |
-20 dB |
Polar Pattern: |
Cardioid / Figure-8 / Omnidirectional / Supercardioid |
Power Sources: |
Phantom Power |
Product Type: |
Matched-Pair Condenser Microphones |
Sensitivity: |
20 mV/Pa |
Sound Field: |
Mono |
