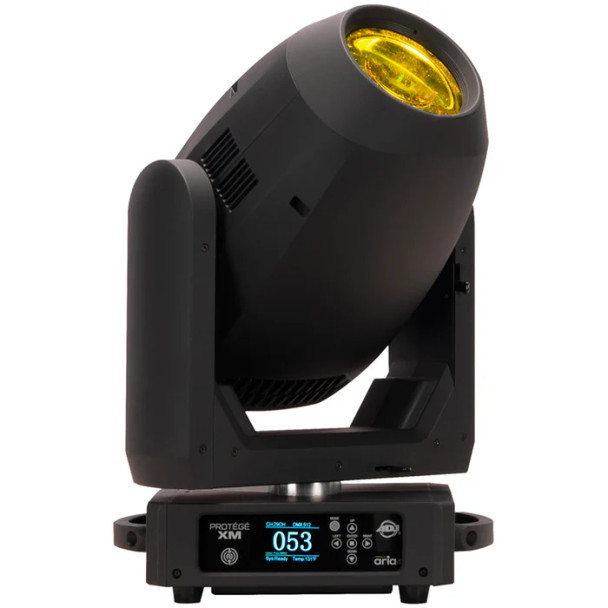

ADJ Protégé XM LED Spot Moving Head

The Protégé XM’s advanced color system includes disc-based CMY color mixing, complemented by two color wheels, each loaded with nine vibrant dichroic filters, including a 2700K CTO filter for warm white output. Creative flexibility is enhanced further through dual rotating GOBO wheels – each featuring seven high-definition, replaceable glass GOBOs—allowing for intricate layered textures and dynamic mid-air effects. Its extensive effects engine features dual 6-facet prisms (linear and circular), which can be overlaid for complex refraction patterns, as well as two variable frost filters for smooth diffusion and an animation wheel for evolving motion graphics.



Robust pan/tilt locks, 360° continuous pan rotation, and 3-phase motors ensure easy transport as well as smooth, precise, and lightning-fast movement. Built to succeed ADJ’s popular Focus Spot 6Z, the Protégé XM sets a new benchmark for compact, high-output LED spot fixtures – ideal for medium-sized stages, venues, houses of worship, and event productions demanding both power and finesse.



Engineered for professional environments, the Protégé XM offers a full suite of modern control and connectivity options. It features both 5-pin DMX and RJ45 input and thru sockets with support for the sACN and Art-Net network protocols. It also offers integrated Aria X2 next generation wireless technology that offers both cable free DMX control and NFC-enabled remote fixture management with OTA firmware updates for quick configuration.

Features:

• Powerful moving head for creating dazzling beam/spot/wash FX of any color in indoor event and performance spaces
• Brilliant 350W white LED engine with 16,000-lm output and 8,000K color temperature, lights up any stage with authority
• Color wheel 1: Red, Blue, Green, Orange, Quad Color, Lime, Amber, Magenta, and Congo Blue
• Color wheel 2: Dark Red, Midnight Blue, Light Turquoise, Pink, UV, Quad Color, High CRI, CTO 2,700K, and CTC
• Disc-based Cyan, Magenta, and Yellow color mixing built-in for unveiling virtually any hue you need
• Highly shapable with overlay-capable 6-facet linear and 6-facet circular prisms, motorized focus/zoom from 3.8° to 44°, and heavy/light frost filtering
• 2 gobo wheels with 7 high-definition and interchangeable glass gobos and an animation wheel promote maximum design creativity
• 3-phase motor offers 540°/630° pan and 270° tilt with pan/tilt lock and continuous 360° pan rotation mode
• Effortless control over 5-pin DMX, sACN, ArtNet, RDM, NFC, RJ45 in/thru, and Aria X2, plus a 6-button control panel and an LCD display
• Dual omega brackets and safety cable included for immediate, safe, and quick installation

Why We Like This

• Delivers high-output LED spot performance in a compact form factor
• Offers extensive color, gobo, and effects control for creative flexibility
• Supports both wired and wireless control workflows

FAQs

Q: Does the Protégé XM support wireless control?
A: Yes, it includes the Aria X2 wireless management system and NFC configuration.

Q: Can the fixture perform continuous rotation?
A: Yes, it supports a separate 360° continuous pan rotation mode.

Q: Are mounting accessories included?
A: Yes, two Omega brackets and a safety cable are included.
