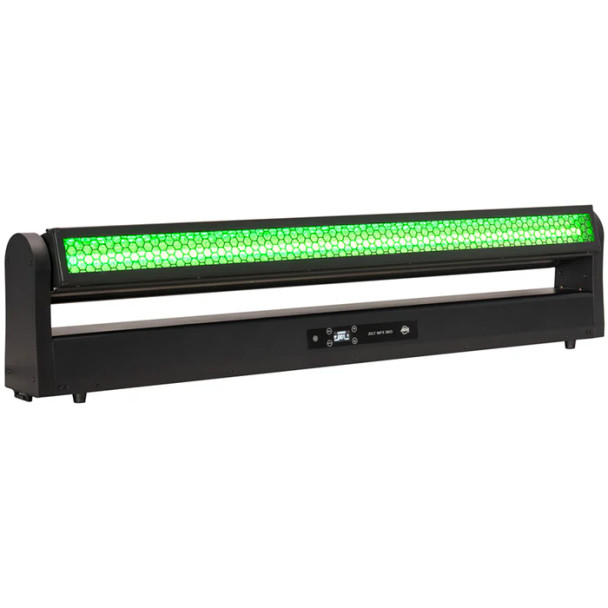

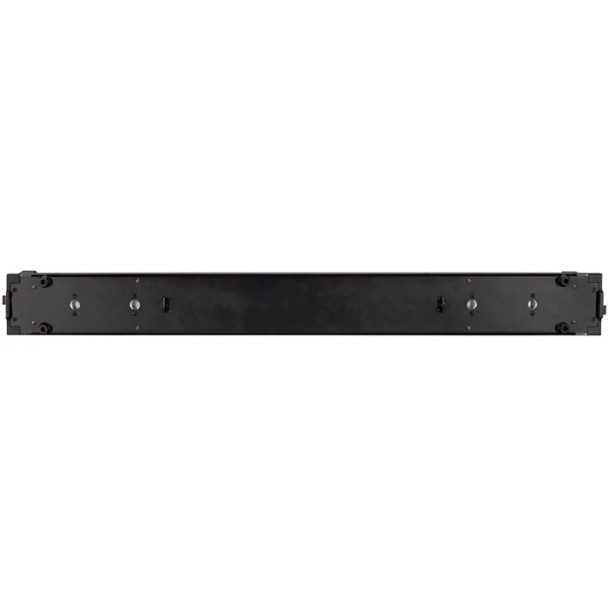

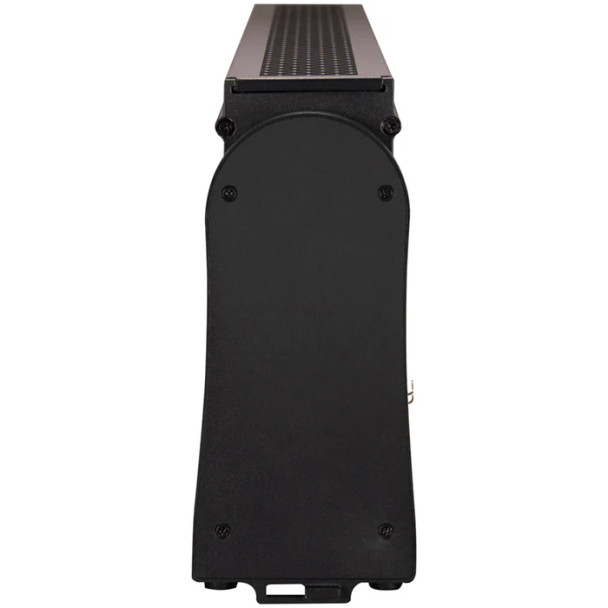

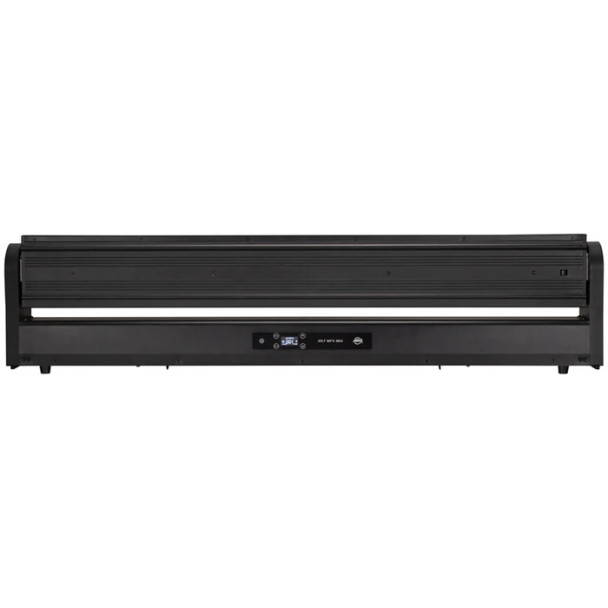

ADJ Jolt MFX 360 LED Hybrid Effect

Description
Tech Specs
Delivery & Returns

Description

The ADJ Jolt MFX 360 is a boundary-pushing hybrid lighting fixture that fuses two of ADJ’s most iconic effects into one powerful, fully integrated design. Engineered for maximum visual versatility, it features a dual-sided configuration that seamlessly merges the atmospheric warmth of the Vintage Bar with the explosive energy of the Jolt Bar, unlocking an entirely new dimension of creative possibilities for lighting designers, rental houses, and integrators.

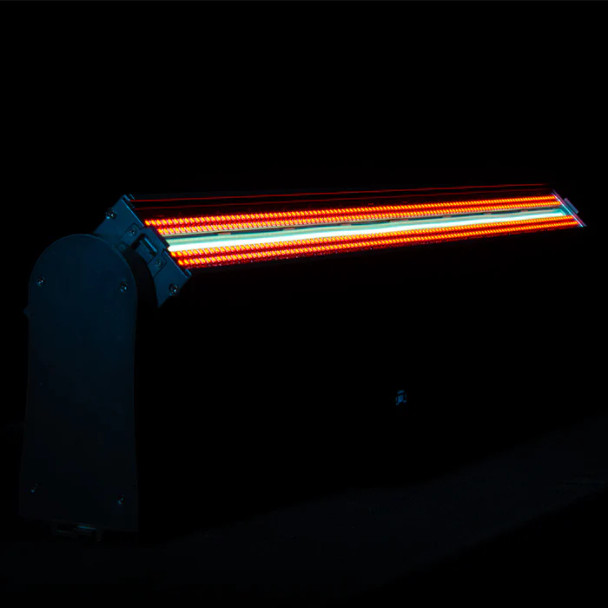

On one side, the Vintage Bar scenic effect delivers a nostalgic glow with a central strip of four 100-watt amber COB LEDs that emulate classic filament-style blinders, surrounded by a textured reflector illuminated by 140 x 0.8-watt RGBL SMD LEDs for vibrant background ambience. Flip to the opposite side, and the Jolt Bar effect takes over with a central strip of 448 x 1-watt cool white strobe LEDs, surrounded by 448 x 0.5-watt RGB color mixing LEDs that provide bold, high-impact washes. The combination of these two contrasting looks allows designers to shift instantly from warm, retro mood lighting to punchy, modern strobe-driven energy.

Thanks to fast motorized tilt and 360° continuous rotation, the Jolt MFX 360 can transform any stage or venue with fluid, high-speed transitions and immersive hybrid effects that move well beyond the capabilities of traditional static fixtures. Creative control is further expanded with an extensive library of built-in macro programs, zone-based pixel mapping, and flexible dimming profiles. A lens slot on the Jolt Bar side enables use of optional frost filters to diffuse the output for a more homogenized look.

Designed for both touring and fixed installations, the Jolt MFX 360 features integrated Aria X2 wireless management system and NFC configuration, ensuring fast setup and robust control across DMX (with RDM), Art-Net and sACN. Rugged construction, a useful tilt lock, and magnetic end caps for easy alignment of fixtures placed end-to-end, round out a fixture built for professional demands.

From generating warm scenic effects to unleashing full-throttle strobe sweeps, the Jolt MFX 360 stands as a singular tool capable of delivering multiple signature looks from one compact unit – making it a transformative addition to any lighting rig.

Features:

Dual-sided Vintage Bar and Jolt Bar design delivers warm, scenic looks and aggressive strobe energy in 1 fixture
Vintage Bar side has 4 x 100W amber COB LEDs and 140 x 0.8W RGBL SMD LEDs
Jolt Bar strobe side has a central strip of 448 x 1W cool-white strobe LEDs and 448 x 0.5W RGB color-mixing LEDs
360° continuous rotation with fast motorized tilt enables fluid transitions and hybrid FX impossible with static lights
Extensive built-in macros and pixel zoning provide high-impact visuals with minimal programming time
Aria X2 wireless and NFC setup allows faster configuration and cleaner installations
DMX, ArtNet, sACN, and RDM protocol support ensures easy integration
Rugged construction with alignment features supports touring reliability and precise multi-fixture layouts

Why We Like This

Combines two signature lighting effects in one rotating fixture
Offers extensive pixel control and built-in creative tools
Reduces rig complexity by replacing multiple fixture types

FAQs

Q: Does the Jolt MFX 360 rotate continuously?
A: Yes, it features 360° continuous motorized tilt in both directions.

Q: Can it be controlled wirelessly?
A: Yes, it includes the Aria X2 wireless management system and NFC configuration.

Q: Are optional lenses available?
A: Yes, optional frost and linear effect filters are available separately.

Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day.

Tech Specs

DMX:	5-pin In/Out, RJ-45 In/Out, Built-in Aria X2 Wireless
DMX Modes:	16, 31, 36, 42, 79, 96, 99, 105, 203, 220, 223, 229 Channels
LED:	Side 1: 4 x 100W COB LEDs, 140 x 0.8W SMD LEDs; Side 2: 448 x 1W SMD LEDs
LED Type:	Side 1: 4 x Amber, 140 x RGBL; Side 2: 448 x Cool White
Illuminance:	Side 1: 473 Lux; Side 2: 585 Lux
Beam Angle:	Side 1: 120°; Side 2: 60°
Features:	360° Tilt (motorized/continuous), Includes: 2 x Omega Brackets, Safety Cable
Protection:	IP20 (indoor use only)
Power Consumption:	780W, 7.09A @ 110V, 60Hz
Power Supply:	Outdoor Locking Power Input, Output (cable included)
Dimensions:	42.44" x 5.08" x 11.02"
