ADJ Hydro Beam CMY Moving Head

Description
Tech Specs
Delivery & Returns

Description

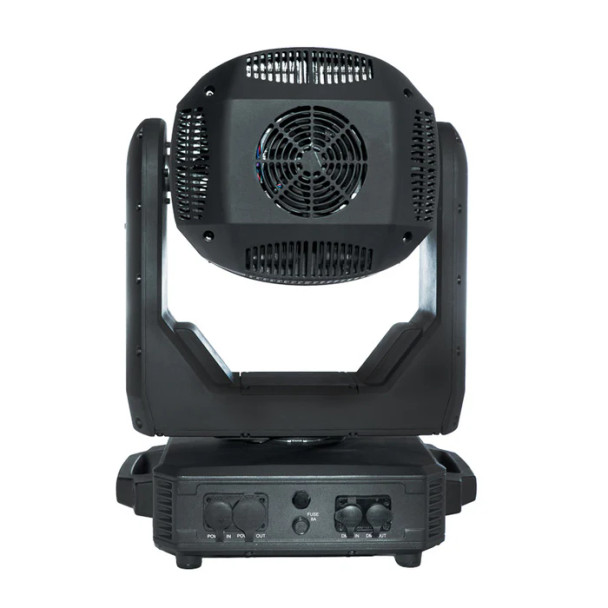

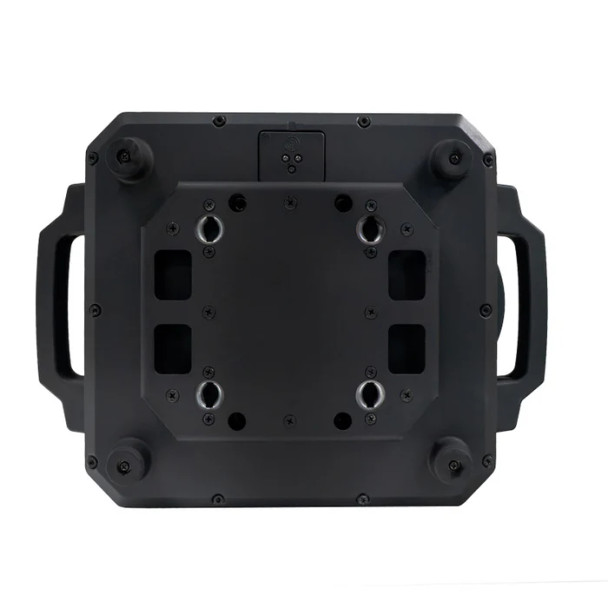

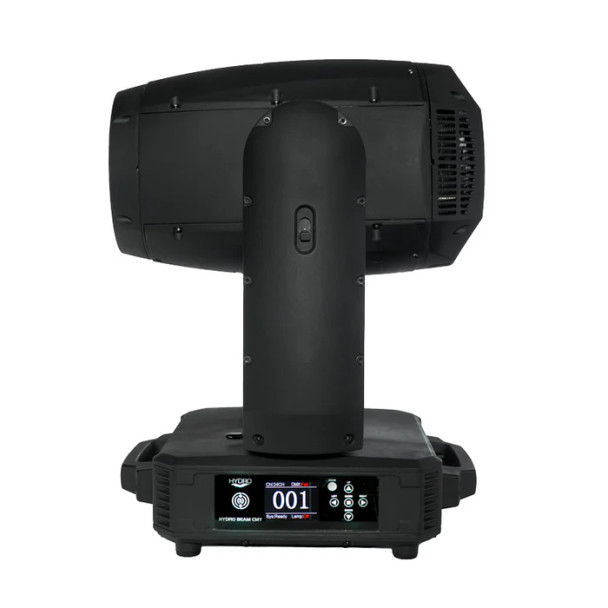

Powerful and precise, the Hydro Beam CMY is an IP65-rated beam fixture built to excel in the most demanding environments. Designed for outdoor festivals, stadium tours, theme parks, and large-scale events, it delivers the punch, speed, and reliability required by lighting professionals working both indoors and out. Powered by an OSRAM Sirius HRI 310W PRO discharge lamp, the fixture produces an ultra-bright, razor-sharp 2-degree beam that cuts effortlessly through ambient light, haze, and fog. Its high-quality glass lens and internal optics ensure consistent output and exceptional beam definition, while an advanced motorized focus system with 16-bit precision keeps every projection crisp at any distance.

A comprehensive feature set gives designers extensive creative flexibility. The CMY color mixing system offers smooth transitions and limitless hues, complemented by a 14-position dichroic color wheel that includes CTO (3200K), CTB (9000K), and UV filters. The fixture’s GOBO wheel features 17 static patterns, including four beam reducers, along with shake and split-color effects for added dynamism. For further versatility, the Hydro Beam CMY incorporates two rotating prisms (16-facet circular and 6-facet linear) that can be used individually or overlaid, plus a frost filter to create a soft-edged wash when desired.

Engineered for professional touring and temporary event applications, the Hydro Beam CMY features 3-phase high-speed pan and tilt motors, ensuring lightning-fast, precise movement. It supports cabled DMX control with RDM (Remote Device Management) and also features integrated Aria X2 wireless DMX and fixture management, allowing for streamlined setup and remote configuration. Robust and IP65-rated, it is protected against dust and water ingress, making it ideal for any weather condition. Combining rugged reliability with refined performance, the Hydro Beam CMY delivers lighting designers huge creative potential from a professional-grade outdoor beam fixture.

Features:

CMY Color Mixing
On-Board Wireless DMX
Motorized Focus + 16-bit fine focus
2-degree beam angle
Frost Filter to create wash effect
High quality glass lens
2 Rotating prisms:
0-100% smooth dimming
Pan/Tilt locks
Various strobe speeds
OTA, wireless, firmware updates
Fan cooled

Why We Like This

Designed for outdoor and indoor use with IP65 protection
Combines beam precision with flexible color and effect options
Supports both wired and wireless DMX workflows

FAQs

Q: Is this fixture suitable for outdoor use?
A: Yes, it is IP65 rated for protection against dust and water.

Q: Does it support wireless DMX?
A: Yes, it includes integrated Aria X2 wireless DMX and fixture management.

Q: What type of lamp does it use?
A: It uses an OSRAM Sirius HRI 310W PRO discharge lamp.

Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day.

Tech Specs

DMX:	IP65 5-pin In/Out, Built-in Aria X2 Wireless
DMX Modes:	20, 24 Channels
Lamp:	1 x 310W Osram Sirius HRI Pro, 7850K
Beam Angle:	2°
Pan & Tilt:	Pan: 540°; Tilt: 270°
Features:	Includes: 2 x Omega Brackets
Protection:	IP65
Power Consumption:	450W @ 120V, 60Hz
Power Supply:	Outdoor Locking Power Input, Output (cable included)
Dimensions:	15” x 11.2” x 23”
Weight:	56 lbs
