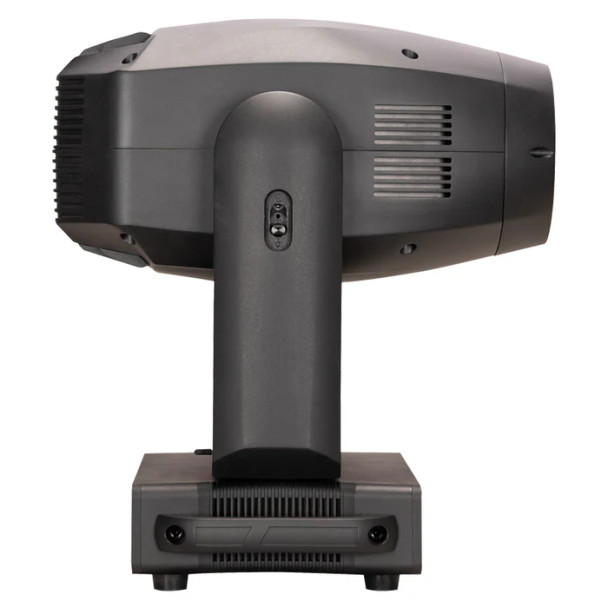

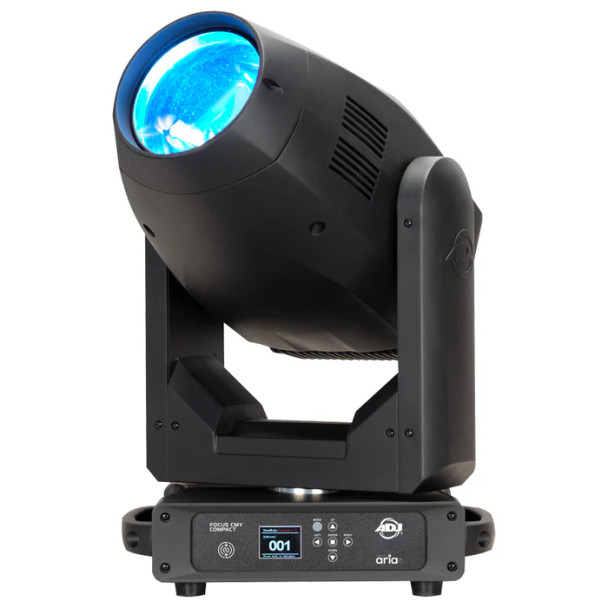

ADJ Focus CMY Compact LED Moving Head

The Focus CMY Compact’s creative potential is enhanced by an extensive collection of beam-shaping features. Its full CMY color mixing system is complemented by variable CTO (3200K–8500K) and a color wheel featuring seven dichroic filters, including a High CRI filter for applications requiring accurate color rendering. Two GOBO wheels – one with eight rotating, indexable glass patterns and another with ten static designs – allow for dynamic texture projection, while dual rotating prisms (6-facet circular and 6-facet linear) and two frost filters (light and heavy) enable a wide variety of aerial and wash effects.



Engineered with professional control and connectivity in mind, the fixture supports DMX, RDM, Art-Net, and sACN, and features ADJ’s Aria X2 wireless management and control system for streamlined setup and monitoring as well as cable free DMX. It also includes NFC configuration, a 6-button touch control panel, and a full-color reversible LCD display. Despite its impressive capabilities, the Focus CMY Compact weighs under 45 lbs., making it easy to rig and transport. With its robust construction, efficient power draw, and extensive creative toolkit, the Focus CMY Compact sets a new benchmark for high-output hybrid LED moving heads in a portable, professional package.

Features:

• Space-conscious moving-head fixture for beams, spots, and washes, in music venues, theaters, corporate events, and houses of worship
• 400W LED engine with full CMY+CTO color mixing and a 7-color dichroic color wheel establish an enormously vibrant palette
• Highly customizable with 3,200K–8,500K CTO, dual 6-facet rotating prisms, 3°–52° motorized focus/zoom, and light/heavy frost filters
• Static/rotating gobo wheels, electronic dimming/strobing, and 540°/630°pan and 270° tilt produce high-precision moving patterns
• Wide range of control options: DMX, RDM, sACN, ArtNet, NFC, and Aria X2
• Connection support for 3-/5-pin DMX and RJ45 input/Network thru
• Easy to install with LCD, 6-button control panel, and included omega brackets

Why We Like This

• Combines beam, spot, and wash capabilities in one compact fixture
• Offers extensive color, gobo, and effect options for creative flexibility
• Supports both wired and wireless control workflows

FAQs

Q: Can this fixture be used wirelessly for DMX control?
A: Yes, it supports ADJ’s Aria X2 wireless management system for cable-free DMX.

Q: Does it support multiple DMX channel modes?
A: Yes, it offers 26-channel, 31-channel, and 40-channel DMX modes.

Q: Are mounting brackets included?
A: Yes, two Omega brackets are included.
