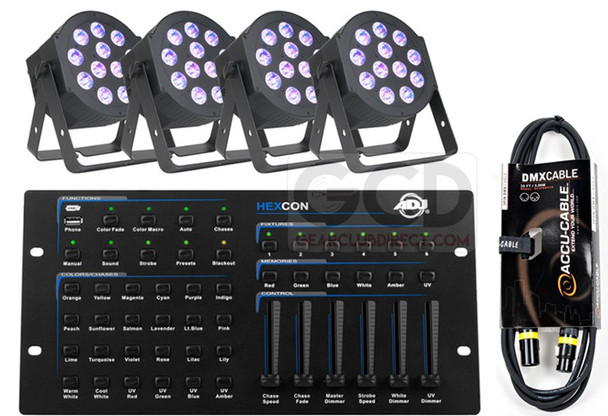

American DJ 4 x 12PX Hex Fixtures with Hexcon Controller and Cable Kit

Includes:

• 4 x 12P Hex

• 1 x Hexcon Controller

• 1 x AC3PDMX10

The ADJ 12P Hex is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. The HEXCON is a 36-channel DMX controller that was specifically designed to control ADJ “HEX Series” wash lighting with 6-IN-1 (RGBWA+UV) LEDs.

Specifications

12P Hex:
• Ultra bright, flat wash fixture with 12 x Red, Green, Blue, Amber, White & UV LED pixels

• Smooth RGBAW + UV color mixing

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers

• Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss

• 4 DMX Modes: 6, 7, 8, & 12 channel

• 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled

• 7 Built-In Programs

• 63 built-in Color Macros

• Flicker Free operation (No flickering on camera)

• 5 selectable Dimmer Curves (Standard, Stage, TV, Architectural & Theatre)

• LED pulse and strobe effect

• Electronic Dimming: 0 - 100%

• Beam angle: 30-degree

• Includes metal gel frame

• 4-button, DMX digital display on rear panel

• Compatible with Dotz Par RF wireless remote control (sold separately)

• Dual yoke allows fixture to be hung or set on the ground

• Data linkable via 3-pin XLR cables

• Power linkable via IEC power cables. (6x 12P Hex’s Max @ 110V, 13x 12P Hex’s Max @ 240V

• Light Source: 12x 12-Watt RGBAW + UV LEDs, (Rated at approximately 50,000 hrs.)

• Light Output: 2770 LUX @ 2M; 733 LUX @ 4M (30-degree beam)

• UV Wavelength: 395nm
• Refresh Rate: 3.6KHz
• Power Draw: 150W total (All LED's @ Full On)

• Multi-voltage operation: AC 110-250V, 50/60Hz (IEC power In/Out)

• Dimensions (LxWxH): 11.75” x 10” x 5.5”/ 298 x 249 x 136mm

• Weight: 9 lbs. / 3.9 kgs
• ETL Approved

Hexcon:

• Compact DMX controller for ADJ HEX series products
• Control up to 6 individual, RGBWA+UV LED fixtures or fixture groups
• 6 user programmable presets, direct access buttons
• 24 Color preset direct access buttons
• 6 multi-function faders
• Color Macro playback mode
• Manual RGBWA+UV intensity control mode
• Color Fade Mode, Color Chase Mode, Auto Run, Sound Active, and Strobe functions.
• On the fly Speed & Fade control of all chase programs
• Sound active mode via internal microphone
• Adjustable microphone sensitivity
• Blackout button
• DMX output connector: 3-pin XLR
• USB phone port (Charges most mobile phones)
• Power In: 12VDC 500mA UL approved power supply (Included)
• Power consumption: 3.6 Watts
• Dimensions: 14.2” x 5.25” x 2.5” (361 x 185 x 65mm)
• Weight: 4lbs. (1.74kgs.)

AC3PDMX10:

• 10-foot, 3-pin DMX Cable
• Used for linking lighting effects to control them in DMX or Master/Slave modes
• No memory rugged cable
• PVC jacket to prevent kinking
