DBX ZC-2 ZC 2 Wall Mounted, Programmable Zone Controller

Write a Review
$79.00

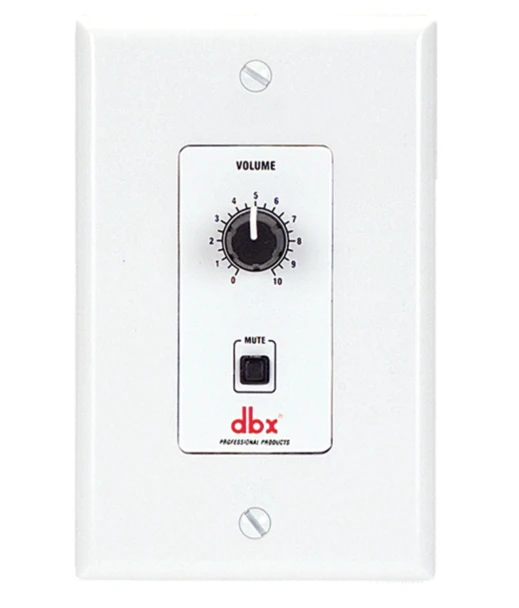

DMX ZC-2 ZC 2 Wall Mounted, Programmable Zone Controller
dbx DBXZC2V - IMG01
SKU:
DBXZC2V
UPC:
691991400759
MPN:
691991400759
Shipping:
Free Shipping
Current Stock:

Description

The Zone Controllers offer extended utility to the DriveRackå and ZonePROåÈ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

The ZC-2 offers programmable volume and mute control for the DriveRack 220i, 260 and ZonePRO products.

All information is subject to change without notice.

Ì_

Recommended for: Installed.

Specifications

Connectors (2) RJ-45
Series Wiring Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
Parallel Wiring using ZC-BOB Up to Six Zone Controllers: 1000 ft.
Parallel Wiring Cable CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
Safety Agency Certifications UL 60065, IEC 60065, EN 55013, E60065
