Description

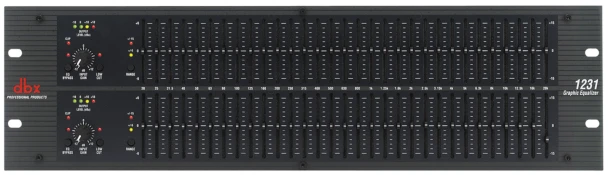

The dbx® 12 Series were designed to meet the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls. The 1231 provides standard features like dual-channels, 31 1/3 octave bands, ISO frequency centers, +/- 12 dB input gain range, and switchable 40Hz/18 dB per octave low-cut filters, but also includes other insightful features.

Features

Switchable boost/cut ranges of ±6 or ±15 dB
Electronically balanced/unbalanced inputs
Servo balanced/unbalanced outputs
RF filtered inputs and outputs
XLR, Barrier Strip, and 1/4" TRS connectors
-12dB/+12dB input gain range
18dB/octave 40Hz Bessel low-cut filter
Chassis/signal ground lift capability
Internal power supply transformer
Power-off hardwire relay bypass with 2-second power-up delay

Why We Like This

The long-throw faders and clearly labeled frequency bands make corrective EQ fast and intuitive, which is especially valuable when tuning a system under time pressure.

FAQs

Q: What kind of equalizer is the dbx 1231?
A: It is a dual 31-band graphic equalizer designed for hands-on system and room tuning.

Q: What connections does the dbx 1231 use?
A: It uses 1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip, with matching output connections listed in the technical specifications.

Q: Where is the dbx 1231 most useful?
A: It is well suited to live sound, touring racks, studios, houses of worship, and installed systems that benefit from immediate physical EQ control.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

Bandwidth:	20Hz to 20kHz, +0.5/-1dB
Brand:	dbx
Bypass Switch:	Bypasses the graphic equalizer section in the signal path
CMRR:	>40dB, typically >55dB at 1kHz
Country of Origin:	CN
DIM H (in.):	7.5
DIM L (in.):	22
DIM W (in.):	11.5
Dimensions:	5.25" H X 19" W X 7.9" D (13.4cm x 48.3cm x 20.1cm)
Dynamic Range:	109dB; 115dB
Frequency Response:	<10Hz to >50kHz, +0.5/-3dB; +/-15dB range; +/-6dB range
I/O Meter:	4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu
Indicators:	EQ Bypass (Red); Clip (Red); Low Cut (Red); +/-6dB (Yellow); +/-15dB (Red)

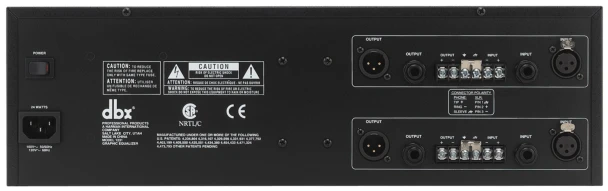

Input Connectors:	1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip
Input Impedance:	Balanced 40 kOhm, unbalanced 20 kOhm
Input Type:	Electronically balanced/unbalanced, RF filtered
Interchannel Crosstalk:	<-80db, 20Hz to 20kHz
Link:	https://dbxpro.com/en-US/products/1231
Low cut Switch:	(recessed) Activates the 40Hz 18dB/octave Bessel high-pass filter
MAP:	655
MSRP:	820
Max Input:	>+21dBu balanced or unbalanced
Max Output:	>+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
Model:	1231
Operating Voltage:	100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
Output Connectors:	1/4" TRS, male XLR (pin 2 hot), and barrier terminal strip
Output Impedance:	Balanced 200 ohm, unbalanced 100 ohm
Output Type:	Impedance-balanced/unbalanced, RF filtered
Power Connector:	IEC receptacle
Power Consumption:	24W
Product Description Long:	12 Series - Dual 31 Band Graphic Equalizer
Product Description Short:	Graphic EQs
Product Type:	Dual 31-Band Graphic Equalizer
Range Switch:	(recessed) Selects either +/- 6dB or +/- 15dB slider boost/cut range
SKU:	DBX1231V
Signal to Noise Ratio:	90dB, 97dB
TAA Compliance:	Non Compliant
THD+Noise:	<0.005%
UPC:	691991400049
Unit Weight:	10.6 lbs.
Weight (lb.):	13.5
