Description

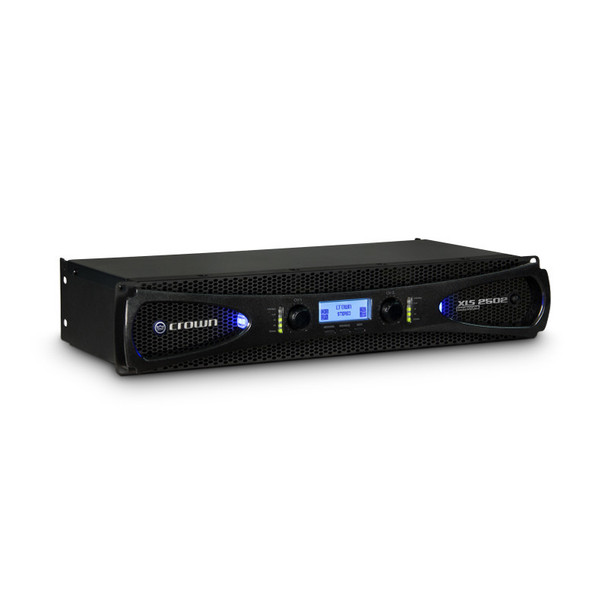

The Crown XLS 2502 is a lightweight two-channel Class D power amplifier delivering 775W per channel using Crown DriveCore 2 technology. It combines selectable input sensitivity, integrated crossover and limiter processing, flexible XLR, quarter-inch and RCA inputs, and an easy front-panel display for portable PA, DJ, rehearsal, and installation use.
Features
- Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lb
- Higher DSP capabilities: More control; has band pass filter per channel
- Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
- Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
- Set sleep mode after specified time without having to press a button
- Security setting disables menu buttons; menu locked/unlocked by entering combination
- System reset allows factory settings to be restored
- Remote power trigger
- Peakx™ Limiters provide maximum output while protecting your speakers
- XLR, 1/4", RCA inputs provide flexibility
- Integrated PureBand™ Crossover System for better performance and control
- Efficient forced-air fans prevent excessive thermal buildup
Why We Like This
It delivers useful DSP and real-world power without the bulk of a traditional amplifier, making it easy to move between mobile rigs and fixed systems.
FAQs
Q: How much power does the Crown XLS 2502 deliver?
A: It is a 2-channel amplifier rated at 775W per channel for the primary published load condition.
Q: What speaker systems can the XLS 2502 drive?
A: It is designed for low-impedance speaker systems; exact supported loads and bridge modes are listed in the technical specifications.
Q: Does the XLS 2502 include DSP or network control?
A: It includes onboard crossover and limiter processing but not Ethernet or digital-audio networking.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
Crown |
Channels: |
2 |
Country of Origin: |
CN |
Crosstalk: |
At 1kHz: > 85dB, At 20kHz: > 55dB |
DIM H (in.): |
6 |
DIM L (in.): |
21 |
DIM W (in.): |
14.5 |
Damping Factor: |
> 200 |
Dimensions: |
19" (48.3 cm) x 3.5" (8.9 cm) x 10.7" (21.2 cm) |
Frequency Response: |
+0dB, -1dB |
Intermodulation Distortion: |
< 0.3% |
Model: |
XLS 2502 |
Product Type: |
Two-Channel DriveCore 2 Power Amplifier |
Rated Output per Channel: |
775W (primary published load condition) |
SKU: |
NXLS2502-0-US |
Sensitivity: |
1.4Vrms |
Signal to Noise: |
>103dB (at .775Vrms, 6dB lower) |
TAA Compliance: |
Non Compliant |
THD: |
< 0.5% |
UPC: |
691991001161 |
Weight (lb.): |
10 |
