Description

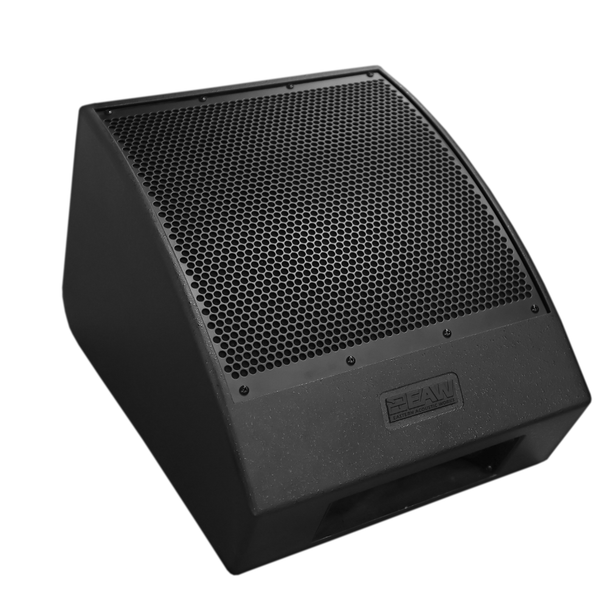

The EAW SM12 is a passive stage monitor designed for performer monitoring in professional live-sound systems. Its form factor and system role are aimed at stage-monitor applications.
Features
- Driver configuration: LF: Transducer, Loading 1 × 12″ cone, 2.5″ VC, Vented; HF: Transducer, Loading 1 × 1 in exit, 44mm voice coil compression driver, Concentric Summation Array (CSA) loaded
- Operating range: 60 Hz–20 kHz
- Maximum SPL: 135 dB
- Nominal coverage: 90 × 60 degress, rotatable
- Power handling: 600 W @ 8 Ω
- EAW technologies: EAW Focusing, DynO, Symmetry of Sources, Concentric Summation Array (CSA), Beamwidth Matched Crossovers
- Operating mode: Single-Amp (LF/HF, DSP w/ EAW Focusing & DynO)
Why We Like This
The SM12 is a straightforward monitor option for stages that already have amplifier and DSP resources available.
FAQs
Q: Does the SM12 require an external power amplifier?
A: Yes. The SM12 is passive and must be driven by an appropriate external amplifier and system processing.
Q: What signal connection should I plan for with the SM12?
A: Plan around 4 × NL4 for this model.
Q: Does the SM12 provide dedicated mounting or rigging provisions?
A: Yes. EAW provides model-specific mounting or rigging provisions; the exact mounting information is listed in the specifications.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Audio Connections: |
4 × NL4 |
Driver Configuration: |
LF: Transducer, Loading 1 × 12″ cone, 2.5″ VC, Vented; HF: Transducer, Loading 1 × 1 in exit, 44mm voice coil compression driver, Concentric Summation Array (CSA) loaded |
EAW Technologies: |
EAW Focusing, DynO, Symmetry of Sources, Concentric Summation Array (CSA), Beamwidth Matched Crossovers |
Finish: |
Black |
Input Impedance: |
8 Ω |
Maximum SPL: |
135 dB |
Nominal Coverage: |
90 × 60 degress, rotatable |
Power Handling: |
600 W @ 8 Ω |
Product Height: |
12.8 in |
Product Length: |
21.5 in |
Product Type: |
Passive Stage Monitor |
Product Width: |
14.1 in |
Recommended High-Pass Filter: |
50Hz, 12dB/oct |
Rigging / Mounting: |
Metal Wall Mount Pan/Tilt Bracket |
